FOR FINE GRINDING PROCESSES IN WET MEDIA SUCH AS DISPERSION, SUSPENSION, EMULSIFICATION AND HOMOGENISING TO PRODUCE STABLE EMULSION TO SUB-MICRON RANGES. A UNIT OF WIDE RANGING APPLICATIONS IN PHARMACEUTICAL, CHEMICAL, FOOD PROCESSING, COSMETICS, PAINT, INK, RUBBER, POLYURETHANE FOAM AND OTHER INDUSTRIES.

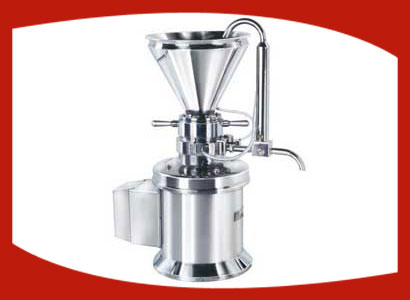

With a stainless steel grinding head, consists of a grooved, conical stator in which the material is 'forced through'. While passing through the annular gap between the conical stator and the rotor, the material is subjected to hydro-dynamic forces. The resultant fluid shear causes shearing, transverse friction, accelerating forces and compression waves of high frequency thus achieving very fine milling action on the product.

BHUVANESWARI MACHINERY PVT. LTD.– A Unit of GR Group – For Reliable Machinery

Due to the different cone angles adopted, the annular gap between the stator and the rotor narrows towards the discharge end. This annular clearance can be infinitely varied even while the machine is in operation to achieve the desired degree of fineness required for the product.

The universal colloid mill has an in-built pumping system to re-circulate the product into the hopper and through the grinding head repeatedly until the level of homogenization required is achieved.

Hopper and re-circulation assemblies are jacketed for temperature control.

SPECIFICATIONS:
  • BHUVANESWARI MACHINERY PVT. LTD.– A Unit of GR Group – For Reliable Machinery Model: UCM 100
  • BHUVANESWARI MACHINERY PVT. LTD.– A Unit of GR Group – For Reliable Machinery Output: 50 to 1000 kgs per hour, depending on the viscosity, density, input particle size and output particle size desired
  • BHUVANESWARI MACHINERY PVT. LTD.– A Unit of GR Group – For Reliable Machinery Motor: 5 H.P. 2900 RPM, 415 Volts, 3 Phase, 50 cps, TEFC, Flanged
  • BHUVANESWARI MACHINERY PVT. LTD.– A Unit of GR Group – For Reliable Machinery Rotor Speed: 3600 / 4000 RPM
  • BHUVANESWARI MACHINERY PVT. LTD.– A Unit of GR Group – For Reliable Machinery Discharge Pressure: 0.4 kg per sq.cm
  • BHUVANESWARI MACHINERY PVT. LTD.– A Unit of GR Group – For Reliable Machinery Hopper Capacity: 25 liters
  • BHUVANESWARI MACHINERY PVT. LTD.– A Unit of GR Group – For Reliable Machinery Floor Space: 500 X 800 mm
  • BHUVANESWARI MACHINERY PVT. LTD.– A Unit of GR Group – For Reliable Machinery Net Weight: 200 Kgs (approx)
  • BHUVANESWARI MACHINERY PVT. LTD.– A Unit of GR Group – For Reliable Machinery Mounting: On castor wheels when desired

* The design of the machine is subject to change from time to time to keep pace with the state of the art ensuring improvement in efficiency and elegance.
