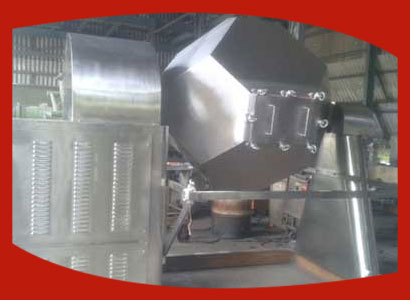

TWELVE SIDED TUMBLING BLENDER, PROMOTES DIFFUSIVE MIXING WITH VERY LITTLE SHEAR AND IS IDEAL FOR PROCESSING FRIABLE, FREE FLOWING MATERIALS. Ideal for use in pharmaceutical, chemical, agro, food processing and tea blending with spraying attachment for different flavours is possible.

BHUVANESWARI MACHINERY PVT. LTD.– A Unit of GR Group – For Reliable Machinery
SALIENT FEATURES:
  • BHUVANESWARI MACHINERY PVT. LTD.– A Unit of GR Group – For Reliable Machinery Ideal for large volume / batch blending
  • BHUVANESWARI MACHINERY PVT. LTD.– A Unit of GR Group – For Reliable Machinery Symmetrical with reference to X,Y & Z axes
  • BHUVANESWARI MACHINERY PVT. LTD.– A Unit of GR Group – For Reliable Machinery Homogeneous mix in shorter time frame / No baffles are required
  • BHUVANESWARI MACHINERY PVT. LTD.– A Unit of GR Group – For Reliable Machinery Extremely gentle handling of products due to very low rotational speeds
  • BHUVANESWARI MACHINERY PVT. LTD.– A Unit of GR Group – For Reliable Machinery Higher loading capacity – 75% of gross volume
  • BHUVANESWARI MACHINERY PVT. LTD.– A Unit of GR Group – For Reliable Machinery Most optimum "volume to space occupied" ratio
  • BHUVANESWARI MACHINERY PVT. LTD.– A Unit of GR Group – For Reliable Machinery Low power consumption
  • BHUVANESWARI MACHINERY PVT. LTD.– A Unit of GR Group – For Reliable Machinery Easy and total discharge
  • BHUVANESWARI MACHINERY PVT. LTD.– A Unit of GR Group – For Reliable Machinery Access for thorough cleaning
  • BHUVANESWARI MACHINERY PVT. LTD.– A Unit of GR Group – For Reliable Machinery Slow speeds – Low maintenance

GMP FEATURES:
  • BHUVANESWARI MACHINERY PVT. LTD.– A Unit of GR Group – For Reliable Machinery Inner drive assembly is encased in M.S.Box structure, externally cladded with SS 304 Sheet
  • BHUVANESWARI MACHINERY PVT. LTD.– A Unit of GR Group – For Reliable Machinery All components are easily dismantled with tongue and groove meeting joints
  • BHUVANESWARI MACHINERY PVT. LTD.– A Unit of GR Group – For Reliable Machinery Easy to dismantle and reassemble
  • BHUVANESWARI MACHINERY PVT. LTD.– A Unit of GR Group – For Reliable Machinery All bearing housing are "SPLIT HOUSING" with leak proof sealing arrangements
  • BHUVANESWARI MACHINERY PVT. LTD.– A Unit of GR Group – For Reliable Machinery Separate hand wheel for positioning the blender for loading and unloading
  • BHUVANESWARI MACHINERY PVT. LTD.– A Unit of GR Group – For Reliable Machinery Internally and externally polished to 120 grit
  • BHUVANESWARI MACHINERY PVT. LTD.– A Unit of GR Group – For Reliable Machinery Aesthetically designed and elegantly finished adds beauty to sop floor
  • BHUVANESWARI MACHINERY PVT. LTD.– A Unit of GR Group – For Reliable Machinery Fail safe blending with repetitive accuracy
  • BHUVANESWARI MACHINERY PVT. LTD.– A Unit of GR Group – For Reliable Machinery Vibration and noise free operation

SPECIFICATIONS:GMP & NON-GMP MODELS

MODEL LAB 500 750 1000 1250 1500 2000 2500 3000 4000 5000 6000 10000
G.V (in Ltrs) 50 500 750 1000 1250 1500 2000 2500 3000 4000 5000 6000 10000
W.V (in Ltrs) 35 350 550 750 900 1100 1500 1800 2250 3000 3500 4200 7000
Thick mm 2 3 3 3 3 4 4 4 4 4 5 5 6
Motor HP 0.5 3.0 3.0 3.0 5.0 5.0 5.0 7.5 7.5 7.5 10 15 25
Discharge by Butterfly Valve mm 100 200 200 200 200 200 200 200 250 250 250 250 250

* The design of the machine is subject to change from time to time to keep pace with the state of the art ensuring improvement in efficiency and elegance.
